 Chopped 1934 Ford Coupe.

View previous topic View next topic Go down
Go to page : 1, 2, 3, 4, 5  Next
AuthorMessage
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Chopped 1934 Ford Coupe.   Sun 14 Apr 2013, 10:58 pm

A few months ago a friend turned up with this kit:



He started it when he was in his teens and he is mid forties now. Just look at the price. GBP2.63. Average kit price to-day is around GBP16.00. LOL.

Anyway, he'd made a start on it all those years ago. Assembled and painted (brushed) the chassis and engine block. Then given up.

So I said I would build it for him.

He had thought about doing it matt black but I persuaded him otherwise.

So now I have my sticky little mitts on it and have free range. :twisted:

This is my inspiration very kindly supplied by Sam in a Skype conversation this afternoon.



I'm going for as close to the colour as I can get and I have some scallops that might work too. I'm also swapping out the engine and gearbox.

The kit chassis is the custom unit from the John Buttera kit so I'm going to use one from the AMT 29 Ford Roadster instead. Looks to be almost spot on. Just need to scour the breakers yard for front suspension.



The roof is a separate item and needs to be glued in place. Fortunately it is a near perfect fit.






_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
Sam
Moderator
Moderator


Posts: 1301
Join date: 2013-02-23
Age: 48
Location: Back in Toledo, Oregon

PostSubject: Re: Chopped 1934 Ford Coupe.   Sun 14 Apr 2013, 11:04 pm

So do you have to cut the fenders off, or can you just dispense with them?

_________________
Wips that died and have not (YET !!!) been resurrected...

Fast Eddie Drag Car 2-26-2012
Ranchero Gasser 3-15-2011
1975 Nova 2-22-2010
1959 Caddy 3-28-2009
1970 VW 10-9-2008
Dodge A-100 6-18-2007
Monogram 70 Chevelle road racer, 1985
Monogram custom 40 ford PU, 1985
Tamiya Wolf WR1 F1 -1979 (yup, you read it right)
Back to top Go down
2whl
Moderator
Moderator


Posts: 906
Join date: 2013-02-22
Age: 64
Location: So Cal

PostSubject: Re: Chopped 1934 Ford Coupe.   Sun 14 Apr 2013, 11:05 pm

You've got my attention.

_________________
Don't think you're on the right road just because it’s a well-beaten path.

2010 A=126 B=8 C=22...2011 A=104 B=15 C=69....2012 A=122 B=15 C=128
2013 A=121 B=5 C=130....2014 A=82 B=3 C=168....2015 A=37  B=0   C=62
Back to top Go down
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Re: Chopped 1934 Ford Coupe.   Sun 14 Apr 2013, 11:43 pm

They need to be cut off Sam.

_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
Geezerman
Resident member
Resident member


Posts: 2103
Join date: 2013-02-24
Age: 80
Location: Gulf coast of central Florids

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 12:15 am

That blue coupe is SWEET !!!!!!
It should be a great rod !!
Back to top Go down
Zbuckster
Admin


Posts: 5509
Join date: 2013-02-17
Age: 66
Location: Aberdeen, Washington

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 1:27 am

Nice project super subject Al.
Back to top Go down
http://s1155.beta.photobucket.com/
pete s
Intermediate Member
Intermediate Member


Posts: 616
Join date: 2013-02-26
Age: 65
Location: Beaverton, OR

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 2:41 am

I love the blue street rod. What an awesome looking car. It just looks like it is ready to jump off the line!!!

This should be a great model :D .
Back to top Go down
MotoScale87
New Member
New Member


Posts: 208
Join date: 2013-03-04
Age: 28
Location: santa ana. ca

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 7:03 am

Sooooo sick can't wait
Back to top Go down
Geezerman
Resident member
Resident member


Posts: 2103
Join date: 2013-02-24
Age: 80
Location: Gulf coast of central Florids

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 11:22 am

Skid wrote:
They need to be cut off Sam.

What do you need from the fender assembly for this build, Skid ?
Just curious. Suppose I ought to just wait and watch.
:drunken:
Back to top Go down
Tumbler75
Intermediate Member
Intermediate Member


Posts: 863
Join date: 2013-02-25
Age: 40
Location: Memphis, TN

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 2:20 pm

Great subject, great ideas, gonna be one totally wicked build when done! Keep at it Al! Can't wait to see more progress. 8)
Back to top Go down
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 7:50 pm

Thanks guys.

Clay, this should explain.

I removed the centre section of the fenders and threw the rest in the parts bin.



This piece will form the floor but more importantly, gives the interior to chassis location.

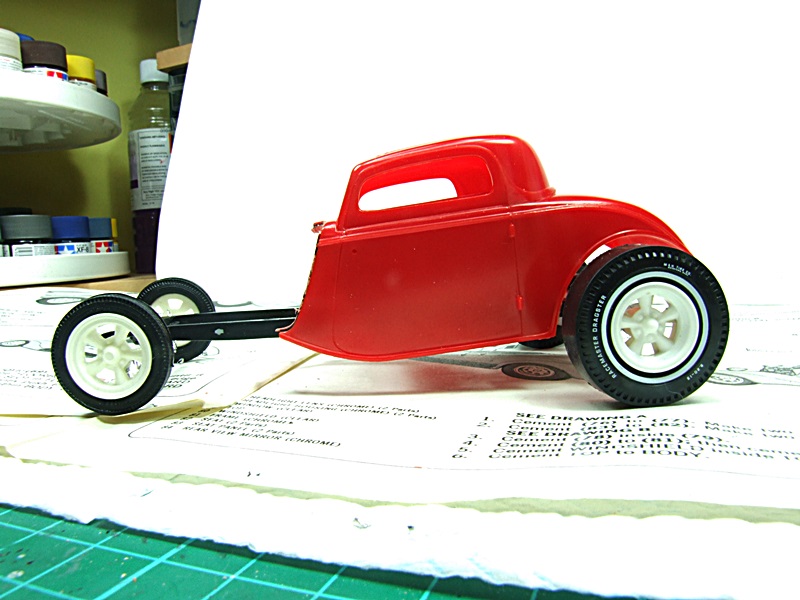

Here you can see that the chassis needs to move forward a little.



That's all for now folks!

_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
Zbuckster
Admin


Posts: 5509
Join date: 2013-02-17
Age: 66
Location: Aberdeen, Washington

PostSubject: Re: Chopped 1934 Ford Coupe.   Mon 15 Apr 2013, 10:26 pm

Looks good Al. That's quite a channel job. Gonna rock that's for sure.
Back to top Go down
http://s1155.beta.photobucket.com/
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 12:23 am

Thanks Buck.

A bit more progress and a problem to solve.

With the rear of the floor cut back a littlle, the chassis goes forward to centralise the axle in the wheel arches. I may have to shorten the chassis at the front a little but I'll take care of that later if need be.



Floor glued in place. The hatched sections are yet to be removed. The white styrene is to help with the rake......





..... or so I thought.

It's not far enough down at the front and too high in the rear!!



I think all I can do is somehow section the interior!!! :shock:





This is new territory for me so any help will be gratefully recieved!!

The axle is temporary and the track is too wide. I'm hoping I can use the kits Jag. rear end.

There is no scuttle on the inspiration car so that is going to have to go and as there is no firewall in the kit, so I'll have to make one.












_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
Geezerman
Resident member
Resident member


Posts: 2103
Join date: 2013-02-24
Age: 80
Location: Gulf coast of central Florids

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 1:46 am

:cheers:
Interior tubs and channeling create problems.
'Swhy I seldom use the int. tub. :drunken:
Back to top Go down
Zbuckster
Admin


Posts: 5509
Join date: 2013-02-17
Age: 66
Location: Aberdeen, Washington

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 4:18 am

Normally on a 1:1 when the body is channeled the floor has to be raised. So the floorboards would be cut out and raise however much you need to make te channel. I hope this helps. I would say to cut the floor off the tub. Then remove some of te bottom of the door panels and then test fit it. Repeat until you have the look you want.
Back to top Go down
http://s1155.beta.photobucket.com/
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 11:02 am

Thanks for that Buck. That's the conclusion I'd came to overnight.

I'll make a pie cut on the floor of the interior.



This at least solves another problem.

The 'firewall' of the interior is flush with the scuttle now that I have removed the forward portion of the body meaning that any new firewall I make would be projecting forwards and not look good.



Now I will be able to move the original firewall back a tad in order to get the fabricated wall slightly recessed.






_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
Geezerman
Resident member
Resident member


Posts: 2103
Join date: 2013-02-24
Age: 80
Location: Gulf coast of central Florids

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 12:35 pm

That channeled 34 is looking mean already !
Back to top Go down
coyote
Moderator
Moderator


Posts: 705
Join date: 2013-03-30
Age: 56
Location: Sydney, Australia

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 12:48 pm

Nice going so far, Yoda. Building cars is a different science to what I do. Blue will,look great.

_________________
I don't need therapy, I need to build another kit.............!!!
Back to top Go down
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 1:26 pm

Thanks both.

Clay, that's quite a compliment coming from you. :)

OK I went ahead and did the pie cut:





The rake looks right now while the rear height is correct methinks.......



...... BUT, I'm thinking it looks a little long at the front and may need the frame shortening? What do my peers thinks.





_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
john2308
Intermediate Member
Intermediate Member


Posts: 980
Join date: 2013-04-10
Age: 70
Location: Phoenix, AZ

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 3:11 pm

The rake looks good, I would do a moch up with the eng. and grille in place before shortin the frame just to be on the safe side. Going to be a awesome ride when your done. John
Back to top Go down
pete s
Intermediate Member
Intermediate Member


Posts: 616
Join date: 2013-02-26
Age: 65
Location: Beaverton, OR

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 4:27 pm

I agree that the rake looks perfect now. I also think the suggestion of a mockup with the engine/grille combo is right on the money.

I am really liking this string of modifications. Looking good!!
Back to top Go down
Zbuckster
Admin


Posts: 5509
Join date: 2013-02-17
Age: 66
Location: Aberdeen, Washington

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 4:36 pm

Looking good AL. Are you going to fillin the rear whell wells? Some flat styrene maybe. I agree with the mockup idea. That grille shell looks like it is laid back quite a bit.
Back to top Go down
http://s1155.beta.photobucket.com/
Tumbler75
Intermediate Member
Intermediate Member


Posts: 863
Join date: 2013-02-25
Age: 40
Location: Memphis, TN

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 5:15 pm

I'm with everyone on this! Do the engine mock up! The reason it looks so long now is because it's jus' hangin' out there like a diving board off the side of a ship. 8)
Back to top Go down
Skid
Admin


Posts: 4266
Join date: 2013-02-15
Age: 67
Location: Newcastle. Good Old Blighty.

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 5:51 pm

Thanks guys.

Yes, I'd intended a mock up with engine first and yes Buck, I'll 'panel in' the rear wheel openings. That will get done once I have the rear suspension installed.

_________________
Al.

"Success consists of going from failure to failure without loss of enthusiasm."

Winston Churchill

"Success is failure turned inside out"

Unknown
Back to top Go down
http://skidsplace.forumotion.co
Geezerman
Resident member
Resident member


Posts: 2103
Join date: 2013-02-24
Age: 80
Location: Gulf coast of central Florids

PostSubject: Re: Chopped 1934 Ford Coupe.   Tue 16 Apr 2013, 6:55 pm

I believe when you get that engine in and the grill set at the 1:1 angle, it willbe nailed ! :drunken:
Back to top Go down

Chopped 1934 Ford Coupe.
View previous topic View next topic Back to top
Page 1 of 5Go to page : 1, 2, 3, 4, 5  Next
 Similar topics
-
» Chopped 1934 Ford Coupe.
» 1934 Ford Pickup--RatRod
» 1934 Ford Pickup. Ratted.
» 1949 Ford Coupe -- Worn
» Monogram 1936 Ford Coupe

Permissions in this forum:You cannot reply to topics in this forum
Skid's Place ::  :: -
