 Austin-Healey 100'6 mild custom

View previous topic View next topic Go down
AuthorMessage
Skid
Admin
avatar

Posts : 6569
Join date : 2013-02-15
Age : 69
Location : Newcastle. Good Old Blighty.

PostSubject: Austin-Healey 100'6 mild custom   Sun 10 Mar 2013, 7:46 pm

This is built from an original issue Revell kit. (around 1960, I think)

The kit shows all the signs of it's era. SIX piece poorly fitting body. Not a lot of flash but the usual amount of injection marks, sink holes etc.

The real deal has a chrome piece running the length of the tops or the front and rear wings. This was where the wings joined the body.

Revell tried to replicate this but it looked truly awful when put together. That's when I decided to do the mild custom job.



The chrome strips were sanded off, the bumper holes front and back were filled, the door handles were left off and the re-cesses and holes filled.

The windscreen was again awful, broken and not chromed, so that was left off and the holes again filled.

I exchanged the kit wire wheels and crappy two part tyres, for some wheels and tyres from a 1970 1/2 Baldwin Motion Camaro. The track had to be narrowed too, as Revell had the wheels hanging out the arches by about 3mm.

I made the fly screen from sheet styrene and the tonneau cover from nasal tissue.

The amount of work that went into the body was quite incredible! Lots of filling and sanding. (Repeat as many times as you wish. LOL)

Paint is Zero Paints Bentley metalic green. When finished, it looked way to dark. That's when I decided on yellow for the fly screen. Just needed a little colour lift methinks.

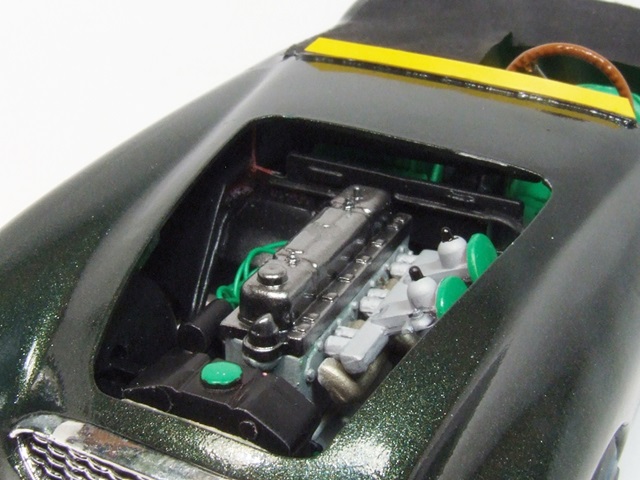

I wired the engine and had to fabricate a new oil filler tube, as that was missing from the kit along with the handbrake.

I'm moderaley pleased with the result.

Would I build another?..... not on your nelly. UNLESS, Revell or an after market supplier, made a factory hard top for it. Then it would be a great basis for conversion to a rally Healey 3000.














_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown


Last edited by Skid on Sun 27 Apr 2014, 5:39 pm; edited 2 times in total
Back to top Go down
http://skidsplace.forumotion.co
Zbuckster
Senior member
Senior member
avatar

Posts : 6807
Join date : 2013-02-17
Age : 68
Location : Aberdeen, Washington

PostSubject: Re: Austin-Healey 100'6 mild custom   Sun 10 Mar 2013, 9:50 pm

8) , Looks ready for a hill climb. Nice wrok Al.
Back to top Go down
http://s1155.beta.photobucket.com/
TJZ
New Member
New Member


Posts : 3
Join date : 2014-04-26

PostSubject: Re: Austin-Healey 100'6 mild custom   Sat 26 Apr 2014, 6:31 am

I stumbled upon your build and am curious as to which Revell kit it was: white plastic or green plastic?

I agree with you about Revell's misguided effort to "suggest" the chrome trim between the wings and the shrouds.

Your clean solution has been done with even a 1:1 Healey I have seen.

As Zbuckster wrote: Nice!
Back to top Go down
Skid
Admin
avatar

Posts : 6569
Join date : 2013-02-15
Age : 69
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Austin-Healey 100'6 mild custom   Sat 26 Apr 2014, 9:26 am

Welcome to Skid's Place TJZ. It would be nice if you would take a few moments to introduce yourself to the members, via the introduction thread.

It's been a a few years since I built it but if I recall rightly, it was white.

This is the kit:


_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
Geezerman
Advanced Member
Advanced Member
avatar

Posts : 3218
Join date : 2013-02-24
Age : 82
Location : Gulf coast of central Florids

PostSubject: Re: Austin-Healey 100'6 mild custom   Sat 26 Apr 2014, 12:01 pm

I like the looks of that engine!
Can I assume that those are S U carbs? I had one on my Harley back in the late 60's.
Back to top Go down
Sam
Moderator
Moderator
avatar

Posts : 1660
Join date : 2013-02-23
Age : 50
Location : Back in Toledo, Oregon

PostSubject: Re: Austin-Healey 100'6 mild custom   Sat 26 Apr 2014, 4:21 pm

I happen to have 7-8 of these in a box. One at least, I believe, is the original issue. I need to dig them out and check now. lol

Nice little car Al !
Back to top Go down
Skid
Admin
avatar

Posts : 6569
Join date : 2013-02-15
Age : 69
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Austin-Healey 100'6 mild custom   Sat 26 Apr 2014, 5:56 pm

Well Clay, they are supposed to be SU's. LOL

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
dadooronron
Intermediate Member
Intermediate Member
avatar

Posts : 905
Join date : 2013-08-29
Age : 69
Location : Sunny borders of North Yorkshire and Co.Durham (UK)

PostSubject: Re: Austin-Healey 100'6 mild custom   Sun 27 Apr 2014, 3:40 pm

Nice recovery of a multi-piece body kit, Al.
I have a similar early Revell Corvette that I gave up on.

Wasn't there originally a chrome trim that clipped over the wing/body joints,
running front to rear?
A friend has an MGA built in a similar fashion, with this trim,
- the wings were steel and the boot/bonnet surround panels were alloy,
and that's why there is always extensive corrosion to these parts.
Back to top Go down
http://www.traffic-graphics.co.uk
Skid
Admin
avatar

Posts : 6569
Join date : 2013-02-15
Age : 69
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Austin-Healey 100'6 mild custom   Sun 27 Apr 2014, 5:43 pm

dadooronron wrote:


Wasn't there originally a chrome trim that clipped over the wing/body joints,
running front to rear?

Yes there was Ron but Revell's idea of it back then looked much more like a badly misaligned mold line. That's why I chose to remove them.

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
webby
Resident member
Resident member
avatar

Posts : 1588
Join date : 2013-02-27
Age : 57
Location : Strathpine Australia. Built over WW2 airstrip

PostSubject: Re: Austin-Healey 100'6 mild custom   Mon 28 Apr 2014, 11:25 pm

Nice save Al. Those old kits remind us of how far our hobby has come since then.

Those old multipiece bodies are a PITA. As you say, hours of fill 'n' sand. Repeat.

I ended up sticking a piece of thin strip over the join on my my '58 Cadiliac Brougham.
The 1:1 had a chrome mould there anyway
Back to top Go down
Old Coyote
Rookie Member
Rookie Member
avatar

Posts : 473
Join date : 2013-10-14
Age : 70
Location : High Point, North Carolina

PostSubject: Re: Austin-Healey 100'6 mild custom   Tue 29 Apr 2014, 1:21 pm

Very nice job on a rather horrendous kit ............ I never could co anything with those multi-piece bodies .............. too cool
