 200mm WWI British infantry.

View previous topic View next topic Go down
Go to page : 1, 2, 3, 4, 5, 6, 7  Next
AuthorMessage
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: 200mm WWI British infantry.   Mon 01 Jun 2015, 6:10 pm

Following a brief discussion with Al, I will be doing a step by step detailed photographic build which I hope some people will find of interest. Hopefully I won't make a total cock up of it and we can all learn about and discuss figure painting as we go along.
I have ordered this figure which I intend to convert/use to depict my Great Grandfather who was in the York and Lancaster Regiment and was killed in action on the 1st July 1916 at the Somme.

http://mitchesmilitarymodels.co.uk/?product=200lff-lancashire-fusiliers-1916

The figure should arrive early next week and Ill start the thread when it gets here.

Gary
Back to top Go down
Zbuckster
Senior member
Senior member
avatar

Posts : 6708
Join date : 2013-02-17
Age : 68
Location : Aberdeen, Washington

PostSubject: Re: 200mm WWI British infantry.   Mon 01 Jun 2015, 6:24 pm

Great I can't wait to follow this one.
Back to top Go down
http://s1155.beta.photobucket.com/
Skid
Admin
avatar

Posts : 6320
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: 200mm WWI British infantry.   Mon 01 Jun 2015, 7:23 pm

Thanks for doing this Gary. Much appreciated.

Wiil your techiques translate to 1:35th scale?

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 01 Jun 2015, 7:28 pm

Thanks ZB, reserve judgement until we have results LOL.
Yes Al I used the same method for the 54mm Nery Diorama, ironically I think its easier on the small figures as I don't find they demand quite as much detail work, such as eyes etc.
You could come along with a smaller figure and see how we get on?.

G
Back to top Go down
A5h
Full Member
Full Member
avatar

Posts : 1172
Join date : 2014-08-11
Age : 37
Location : Sheffield UK

PostSubject: Re: 200mm WWI British infantry.   Sat 06 Jun 2015, 10:02 pm

Sounds a great idea, would love to know how to paint models, I will be watching with interest and awe no doubt
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Sun 07 Jun 2015, 10:09 am

Thanks Ash, I hope it'll be interesting and all comments will be welcome.
Back to top Go down
itsonlyakit
New Member
New Member
avatar

Posts : 111
Join date : 2013-02-28
Age : 68
Location : Victoria B.C. Canada

PostSubject: Re: 200mm WWI British infantry.   Sat 13 Jun 2015, 4:22 am

I will be watching this also because I have painted my fair share of figures. Lead, resin, plastic in various scales. 200 millimeters is not a small figure. That's about 8 inches tall, less headgear. Is this a metal casting or resin ? I have found that no matter what the scale, the more detail the sculptor includes, the easier the figure is to paint.
Cheers Eh!
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Sat 13 Jun 2015, 9:24 am

Hello itsonlyakit, the figure is a resin cast and I totally agree that sharp detailing makes a huge difference when painting. Ill be starting with the first post on Monday.
Back to top Go down
Johnag
Full Member
Full Member
avatar

Posts : 1390
Join date : 2013-10-12
Age : 51
Location : North Wales, U.K...

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 12:53 pm

Hi Gary...

I have found my seat and thank you for stocking up the KFC oven...

Andy... popcorn
Back to top Go down
http://www.veterans-uk.info/
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 1:11 pm

Glad your looking in Andy.
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 2:47 pm

OK guys Im going to make a start on this now. Before I do though I would like to make VERY clear that I do not profess to be an expert figure painter (Ive only been in the hobby for a couple of years), and this thread is in no way intended as a lecture or teaching exercise. I hope we'll learn a few things together as we go along, and all comments/suggestions and criticism will be welcome. This will be a VERY 'photo heavy' thread as I believe a picture is worth a thousand words, and I don't want repetitive strain wrist injury LOL.

The first few will be with my iPad but I have a nice compact camera coming which will be here by the time I get to important painting details.

I always start my build by making sure I know what Ill be making and painting and what colour its supposed to be. This is a 200mm Lancashire Fusilier which I will be converting ( by removing the shoulder tiles and scratch making new ones) to a York & Lancs to represent my Great Grandfather who was killed in The Battle of Albert at The Somme, on the very first day of the offensive!!, but he was definitely not alone in this respect. Here are the pice I've found on he internet which ill be using for reference. I print off the image relevant to the stage I'm at and have on my bench for easy reference to save me going on line, or checking my iPad images.

The uniform:










Helmet:





Belts and bags:





Scratch built shoulder tiles and badges:





Clean up of parts is something that a lot of people do in one go at the start of the build and resin kits generally have quite a bit of clean up work to do. This is a process which i hate with a passion and so as not to loose patience, and avoid extra work by removing something I shouldn't, I clean up each piece as I'm about to use/assemble/paint it. I tend to clean up and paint the head separately as I find it easier to move around than it would be attached to the figure, then as a rule, unless there are obvious advantages to painting a part before assembly I build and prime the whole figure.

I begin by washing all the parts with a mild dishwashing set up and allow to air dry, I don't usually attach the head to a pin vice for this, but Id done that before remembering to wash it LOL. I even do this with injection molded plastic kits but this could just be out of habit?. I have found this to be critical with resin, although some people say the don't do it, because if I don't wash off the mold release agent I find that:

The paint is repelled and separates on contact with the resin much like water off a waxed cotton jacket. This tends to lead to an uneven splotchy effect which is visible through the paint layers and frankly looks crap and/0r:
The paint needs to applied thickly to adhere properly and apart from the risk of concealing detail which is a schoolboy error Ive done a few times and had to strip a part, my whole painting technique (if you can call it that LOL) depends on applying thin layers often as transparencies or glazes. (more on this later).

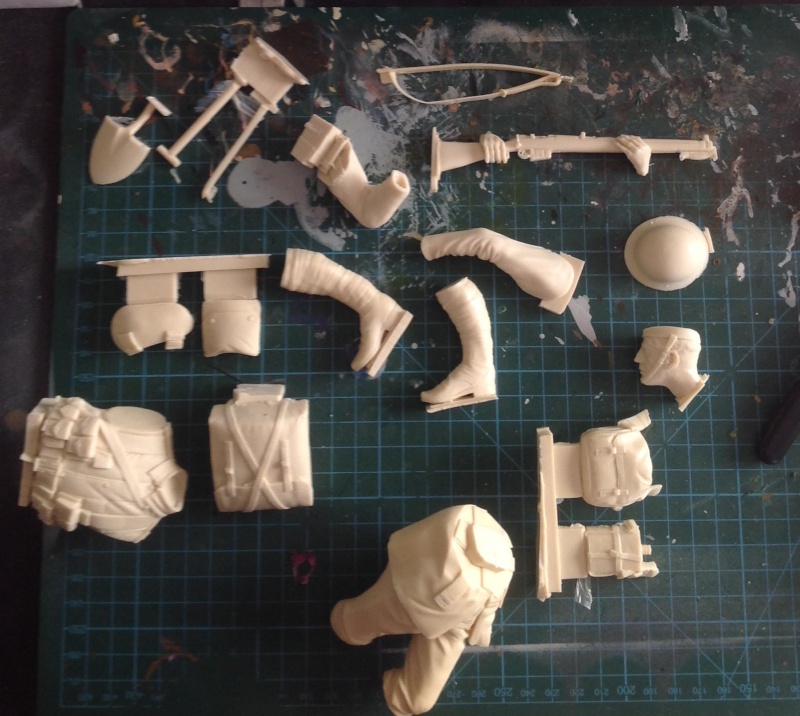

Parts check and basic tools for clean up, I also use a multi speed rotary tool. I won't repeat this and please take it as read that if I'm painting to attaching a piece, it has been 'cleaned up'.





Ive cleaned up the head and drilled it onto a pin vice. This allows me to easily move around in the vice and also to remove it and hold it by hand if i feel like it. Mostly though I leave it in a multi position vice which I really like.





Ive got some primer coming tomorrow and we can discuss priming and begin painting the dreaded face. Hope too see you back then guys.

G


Last edited by GaryDainton on Fri 19 Jun 2015, 6:43 pm; edited 1 time in total
Back to top Go down
dogfish7
Intermediate Member
Intermediate Member
avatar

Posts : 662
Join date : 2013-02-27
Age : 70
Location : Hoodsport, WA

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 2:52 pm

Awesome! This will be very helpful as well as very interesting!
Back to top Go down
http://www.dogfish7.webs.com
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 3:00 pm

Thanks Bruce, hope so. LOL
Back to top Go down
Skid
Admin
avatar

Posts : 6320
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 3:05 pm

Goodo on making a start Gary. Got my klit prepped and ready to follow along.

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 3:15 pm

Great stuff Al, Ill try to make posts as regular as possible, aiming for at least twice a week to maintain good progress and hopefully interest.
Back to top Go down
Zbuckster
Senior member
Senior member
avatar

Posts : 6708
Join date : 2013-02-17
Age : 68
Location : Aberdeen, Washington

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 6:03 pm

I am really liking this. very well done I am sure I will learn a ton.
Back to top Go down
http://s1155.beta.photobucket.com/
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 6:13 pm

Thanks ZB, much appreciated.
Back to top Go down
itsonlyakit
New Member
New Member
avatar

Posts : 111
Join date : 2013-02-28
Age : 68
Location : Victoria B.C. Canada

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 7:28 pm

Great photos of the figure pieces. Photos of "re-enactor" look good for reference but he is way too clean at the moment. Noticed how he has shortened some straps by knotting on top of shoulders. Rifle looks original and used as is the shovel. I volunteer at a local military museum and we have a good assortment of WW1 Canadian issued equipment and uniforms. There were slight differences but not that much. Take your time with the head and hands and all will end well.
Cheers Eh!
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Mon 15 Jun 2015, 7:50 pm

Thanks for that IOAK, We'll see how he pans out.
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Tue 16 Jun 2015, 8:12 pm

All paints will be Vallejo Model Colour MC or Model Air MA. I like both these for brush painting and I find the only difference is the model air is obviously thinner. I just use what I have and have no preference.
When doing the head I start by priming with Vallejo black primer and block on the colour very roughly before sketching in the eyes. I don't bother trying to keep anything tidy at this stage as I find i often make mistakes and prefer to tidy up later on.



Then I block in with Vallejo MC Basic Skintone where I think the highlights will be as this will show through the basic flesh going on later.




Next I build up a few very thin layers of base flesh with is MC Brown Sand with a little MC Basic Skintone.




Now I block in the eye area with MA black.



Then fill in the eye with a 50/50 mix of MA aged white and MC Light flesh leaving a thin line of black around the eye and the round (ish LOL) pupil/iris.




Then I fill in the iris with whichever colour i want, in this case MA french blue.



Its very important to remember that were only blocking colour in yet and not to expect any realism, there is a lot of work to do with many thin transparent layers or glazes on the flesh and fine detailing on the eyes. At this stage we are simply laying the basic foundations so he looks a bit 'action man' like.
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Tue 16 Jun 2015, 8:29 pm

Just as a note in case anyone is interested I have lot of brushes but invariably use Windsor and Newton Series 7 Miniatures sizes 000, 00, 0, 1, 2 ,3 and 4. I hardly ever reach over these to grab another make of brush.
Back to top Go down
dogfish7
Intermediate Member
Intermediate Member
avatar

Posts : 662
Join date : 2013-02-27
Age : 70
Location : Hoodsport, WA

PostSubject: Re: 200mm WWI British infantry.   Tue 16 Jun 2015, 8:41 pm

Way cool!
Back to top Go down
http://www.dogfish7.webs.com
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Tue 16 Jun 2015, 9:03 pm

I prefer it when they start to come to life Bruce, but the basics must be done.
Thanks for looking in.
Back to top Go down
Guest
Guest



PostSubject: Re: 200mm WWI British infantry.   Tue 16 Jun 2015, 9:22 pm

Well thats exactly what I do ...... except mine come out looking like coco the bloody clown!
Back to top Go down
GaryDainton
Resident member
Resident member
avatar

Posts : 2831
Join date : 2014-03-06
Age : 49
Location : Bolton UK

PostSubject: Re: 200mm WWI British infantry.   Tue 16 Jun 2015, 9:24 pm

Back to top Go down
