PostSubject: Re: Jim Richard's Ford Falcon   Tue 24 Sep 2013, 2:40 am

Cool stuff and am surprised "Minilite" wheels aren't commonly reproduced as they were sooo much everywhere in models for a few years. I saw the Jim Clark Cortina at a model sale recently, a rare thing in the U.S. Midwest, thanx for the fotos !
Back to top Go down
webby
Resident member
Resident member
avatar

Posts : 1564
Join date : 2013-02-27
Age : 57
Location : Strathpine Australia. Built over WW2 airstrip

PostSubject: Re: Jim Richard's Ford Falcon   Tue 24 Sep 2013, 6:43 am

You're not alone re the "nose high" stance. It looks that way in the metal and on TV too.

And I wish I had the chance to see Jim Clark race- I was 8 when he was killed. Lakeside Raceway, where he raced in the 'Tasman' Series in the '60s is still active. Go there often.

Back on topic. She's starting to take shape- what are you going to do for the interior?

Cheers,

Chris.
Back to top Go down
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Tue 24 Sep 2013, 9:44 am

DAD.... I was extremely serious about it.

I competed in the ANECCC (Assosiation of North East and Cumberland Car Clubs championship) which if I remember correctly, consisted of thirteen rounds in about 39 weeks. Then a three month break during the summer when I would compete in hillclimbs, autotests, autocross.... anything as long as it meant driving fast!!! LOL

I was working for good money back then and spent almost all of it on the car. Used to wear raggy old clothes way past their best and entertainment consisted of just one pint of beer per week at Tynemouth and District Motor Club.!!! LOL

Until two engine blow ups in about four months put paid to it all. Being a privateer, I was then forced to enter the real world and say goodbye.

Happy days though and I wouldn't change it  for the world.

Chris..... Jim Clark was a brilliant driver, cut short in his prime. IMO, I think he was the best 'driver' ever. He was a joy to watch and his car control was just something else.

However, by definition he was not as good a 'racer' as other drivers, like Senna and Mansel for instance. He didn't come from behind too well. His great forte was to stick it on pole, be first into and out of the first bend and control the race from there. Then he was faultless almost.

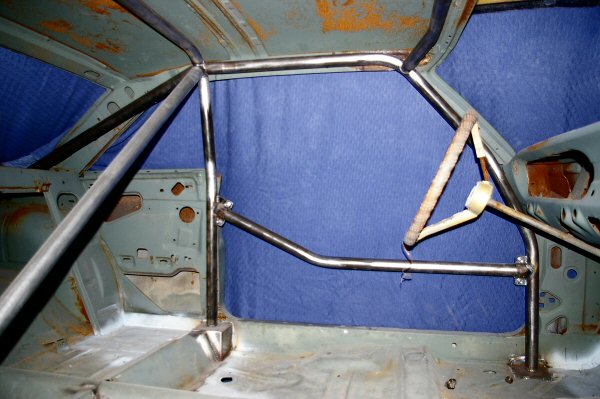

As for the interior, this is the only photo I have of the interior of ANY race Falcon, so I'm unsure as to wether or not the door cards should remain or be replaced with sheet alluminium!!


_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
webby
Resident member
Resident member
avatar

Posts : 1564
Join date : 2013-02-27
Age : 57
Location : Strathpine Australia. Built over WW2 airstrip

PostSubject: Re: Jim Richard's Ford Falcon   Tue 24 Sep 2013, 1:07 pm

Al, try this link. About halfway down the page there's some engine & interior photos.

http://www.jimrichardsracing.com.au/JRGallery.php

Looks like you'll be making some door cards........

Chris.
Back to top Go down
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Tue 24 Sep 2013, 6:32 pm

Thanks for the link Chris. Much appreciated.

Hmmm.... a bit to modern for my taste though. I think I'll go with something of an old school look. Correct or not!! LOL

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
dadooronron
Intermediate Member
Intermediate Member
avatar

Posts : 905
Join date : 2013-08-29
Age : 69
Location : Sunny borders of North Yorkshire and Co.Durham (UK)

PostSubject: Re: Jim Richard's Ford Falcon   Wed 25 Sep 2013, 2:21 pm

Yes, Al, racing and rallying wasn't (isn't) cheap.
I lacked the finance, the skills and largely the bottle to throw my cars sideways into every corner.
I started off with the Cortina and Anglias in my 20's, and then with the Fiestas in my late 30's.
To be bluntly honest I was just making up the numbers at the bottom of the entry list - but I thoroughly enjoyed it !



....But back to your thread - very interested in the subject.
I have found a set of minilites that were going on a model of my race beetle, but are too wide.
So I have just ordered a '66 Mustang from a certain Ebay seller and planning to build a car similar to your Falcon.
....I am very easily influenced ! Looking forward to the next instalment.
Back to top Go down
http://www.traffic-graphics.co.uk
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Wed 25 Sep 2013, 4:35 pm

During the early years, a friend and I bought a front ended Anglia (notchback) and a rear ended Fiat 132. The idea being to place the Fiat engine in the Ford. Never happened though. He wouldn't stump up the cash!! LOL.

I'd watch out for that eBay geezer, he's a bid shady I hear!!! LOL

Looking forward to your build. Minilites on a 66 'stang...... now that is COOOOOOL!!!!

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
dadooronron
Intermediate Member
Intermediate Member
avatar

Posts : 905
Join date : 2013-08-29
Age : 69
Location : Sunny borders of North Yorkshire and Co.Durham (UK)

PostSubject: Re: Jim Richard's Ford Falcon   Wed 25 Sep 2013, 6:48 pm

Ford Anglias were cheap and plentiful
- once they had served their rally purpose they were stripped and ended up at Aycliffe Stock Car Stadium !

Back to top Go down
http://www.traffic-graphics.co.uk
Geezerman
Advanced Member
Advanced Member
avatar

Posts : 3194
Join date : 2013-02-24
Age : 82
Location : Gulf coast of central Florids

PostSubject: Re: Jim Richard's Ford Falcon   Thu 26 Sep 2013, 10:48 am

Good info for the next person to give it a go.
Looks to make a great model !
Back to top Go down
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Fri 27 Sep 2013, 12:02 am

It's been a few days since the last update but that's cos I scratch built a roll cage and rather than document it here, I wrote a tutorial for it. (See tutorials)


_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
wisdonm
Rookie Member
Rookie Member
avatar

Posts : 291
Join date : 2013-02-27
Location : Brookfield (Milwaukee), Wisconsin

PostSubject: Re: Jim Richard's Ford Falcon   Fri 27 Sep 2013, 3:15 am

Squadron has these on sale for $22.50.

http://www.squadron.com/SearchResults.asp?Search=falcon&Submit=


Nice rollbar, Al.
Back to top Go down
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 12:47 am

Tonight I started on the race interior.

At first, I reversed the door cards, ground off the door hardware (now on the outside) and filled in the door handle recess' (now on the inside) Easy way to do it right.?

Wrong.

I faffed on for ages trying to get a smooth finish in the inside. No way. I just kept seeing the outlines of the recess'.

Finaly. I did what I should have done in the first place and make new cards. While I was on I also scribed door shut lines.

Then I paneled in the rear and added a parcel shelf.






_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
Zbuckster
Senior member
Senior member
avatar

Posts : 6788
Join date : 2013-02-17
Age : 68
Location : Aberdeen, Washington

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 12:58 am

Looking good Al.
Back to top Go down
http://s1155.beta.photobucket.com/
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 5:34 pm

I added the rear main hoop braces, so apart from modifying the dash, adding the seat and some other details, the main work on the interior is complete.








_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
john2308
Full Member
Full Member
avatar

Posts : 1117
Join date : 2013-04-10
Age : 72
Location : Phoenix, AZ

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 6:00 pm

Looks good Al   I like the way you did the roll cage, might try your style on a couple builds. Side panels look great 001
Back to top Go down
Zbuckster
Senior member
Senior member
avatar

Posts : 6788
Join date : 2013-02-17
Age : 68
Location : Aberdeen, Washington

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 7:55 pm

Excellent.
Back to top Go down
http://s1155.beta.photobucket.com/
harron68
Advanced Member
Advanced Member


Posts : 3124
Join date : 2013-02-28
Age : 67
Location : MIDWEST

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 9:02 pm

Very smooth fit all around. The care taken with roll cage connections shows your skill and patience. The door panel idea is one I had not considered. Probably less work than trying to sand off panel details. Thanx!
Back to top Go down
webby
Resident member
Resident member
avatar

Posts : 1564
Join date : 2013-02-27
Age : 57
Location : Strathpine Australia. Built over WW2 airstrip

PostSubject: Re: Jim Richard's Ford Falcon   Sat 28 Sep 2013, 11:25 pm

harron68 wrote:
Very smooth fit all around.  The care taken with roll cage connections shows your skill and patience.  The door panel idea is one I had not considered.  Probably less work than trying to sand off panel details.  Thanx!
Seconded.001
Back to top Go down
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Sun 29 Sep 2013, 10:49 am

Thanks guys.

Next up was the dashboard.

The only photo I could find was of the car as it is currently racing and that has a 'modern' look to the dash that I don't particularly like. So I went more 'old school'. (nothing new there then!! LOL)

First job was to cut off the switches and knobs and drill out the holes:



Then I cut away the bezels and anything else that protruded:



Next I needed to make an infil panel. To do this I used the rear upper half of the dash to get the curve right:



The panel was then cut, shaped and glued in poistion:





Finaly the 'hardware' was added:



The 'big red start/stop button' is a turned down brass pin head. The flick switches I made from the stems of the same. The instument bezels are anglers 'rig rings' and are filled with two part epoxy. The MSD ignition box is AM resin and the 'fittings' on the cable ends are tiny beading beads.






_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown


Last edited by Skid on Sun 29 Sep 2013, 3:53 pm; edited 1 time in total
Back to top Go down
http://skidsplace.forumotion.co
Geezerman
Advanced Member
Advanced Member
avatar

Posts : 3194
Join date : 2013-02-24
Age : 82
Location : Gulf coast of central Florids

PostSubject: Re: Jim Richard's Ford Falcon   Sun 29 Sep 2013, 11:53 am

Dash looks great !!!
Nice work !
Back to top Go down
harron68
Advanced Member
Advanced Member


Posts : 3124
Join date : 2013-02-28
Age : 67
Location : MIDWEST

PostSubject: Re: Jim Richard's Ford Falcon   Sun 29 Sep 2013, 2:27 pm

Incredible!
Back to top Go down
Zbuckster
Senior member
Senior member
avatar

Posts : 6788
Join date : 2013-02-17
Age : 68
Location : Aberdeen, Washington

PostSubject: Re: Jim Richard's Ford Falcon   Sun 29 Sep 2013, 5:45 pm

That Dash rocks. Nice work AL.
Back to top Go down
http://s1155.beta.photobucket.com/
dadooronron
Intermediate Member
Intermediate Member
avatar

Posts : 905
Join date : 2013-08-29
Age : 69
Location : Sunny borders of North Yorkshire and Co.Durham (UK)

PostSubject: Re: Jim Richard's Ford Falcon   Mon 30 Sep 2013, 1:16 pm

Great work Al - although I have been building for years, it shows I’m still an amateur when it comes to detail.
Inspired by this thread (and I’ll be stealing all the ideas) I have bought a cheaper ’66 Mustang Fastback
to turn into a circuit racer, similar to the Falcon, - and I’ll try and stick with this one and get it finished.

Back to top Go down
http://www.traffic-graphics.co.uk
Sam
Moderator
Moderator
avatar

Posts : 1660
Join date : 2013-02-23
Age : 50
Location : Back in Toledo, Oregon

PostSubject: Re: Jim Richard's Ford Falcon   Mon 30 Sep 2013, 7:58 pm

Al, great work so far. One thing I need to bring to your attention though, that trumpeter missed. Falcons four speeds were side loaders, not top loaders. The Mustang used a toploader and the shifter came up through the top of the tunnel, on the falcons the shifter came off the side of the shifter and was not centered in the tunnel.
Back to top Go down
Skid
Admin
avatar

Posts : 6507
Join date : 2013-02-15
Age : 68
Location : Newcastle. Good Old Blighty.

PostSubject: Re: Jim Richard's Ford Falcon   Mon 30 Sep 2013, 8:11 pm

Thanks guys.

Thanks for the HU reminder Sam.

So it should be offset towards the driver something like this?



That's the interior of the 1:1 car. Now you know why I'm going 'old school'!!!

_________________
Al.

Success always demands a greater effort.” Winston Churchill

"Success is failure turned inside out"  Unknown
Back to top Go down
http://skidsplace.forumotion.co
Sponsored content




PostSubject: Re: Jim Richard's Ford Falcon

Back to top Go down

Jim Richard's Ford Falcon
View previous topic View next topic Back to top
Page 2 of 4Go to page : Previous  1, 2, 3, 4  Next
 Similar topics
-
» Automobiles you don't see everyday...
» [Deck Profile] Falcon Beat
» Ford AM/FM Truck Radio
» Looking for 2008-12 Ford Escape Rear Bumpah
» 1936 Ford "Billetproof Coupe"

Permissions in this forum:You cannot reply to topics in this forum
Skid's Place :: Works In Progress :: Race cars-
Jump to:
